| コーティングタイプ: | PVD | 硬度: | HRA90 |
|---|---|---|---|
| 材料: | タングステンカーバイド | モデル: | VNMG |
| 許容範囲: | ±0.08～±0.18 | 角度T: | 35° |
| 角度N: | 0° | 直径: | 4.76mm |
| 厚さ: | 3.81mm | 角半径: | 0.4mm、0.8mm |
| チップブレーカ: | 両面溝 | コーティングの色: | pvdおよびcvd |
| ワーク資料: | ステンレス鋼および鋼鉄 | HRCの範囲: | 45HRC、55HRC、60HRC、65HRC |
| 最小注文: | 10個 | ||
| ハイライト: | HRA90 Hardness CNC Insert,45HRC-65HRC Turning Insert,3 Years Warranty Carbide Insert |
||

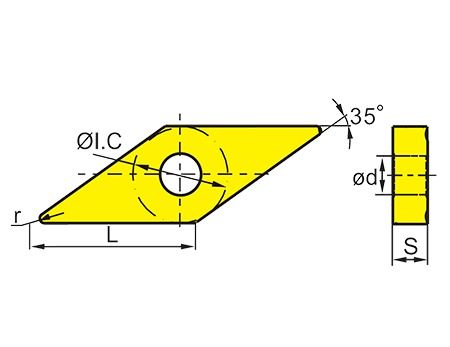

| Parameter | Value |
|---|---|
| T | 35° |
| N | 0° |
| M | ±0.08-±0.18 |
| G | Holes |
| Type | S | ϕd (mm) | r (mm) |
|---|---|---|---|
| VNMG160404-OPF | 4.76 | 3.81 | 0.4 |
| VNMG160408-OPF | 4.76 | 3.81 | 0.8 |
| VNMG160404-OPM | 4.76 | 3.81 | 0.4 |
| VNMG160408-OPM | 4.76 | 3.81 | 0.8 |
| VNMG160404-OMM | 4.76 | 3.81 | 0.4 |
| VNMG160408-OMM | 4.76 | 3.81 | 0.8 |
| VNMG160404 | 4.76 | 3.81 | 0.4 |
| VNMG160408 | 4.76 | 3.81 | 0.8 |
| VNMA160404 | 4.76 | 3.81 | 0.4 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
