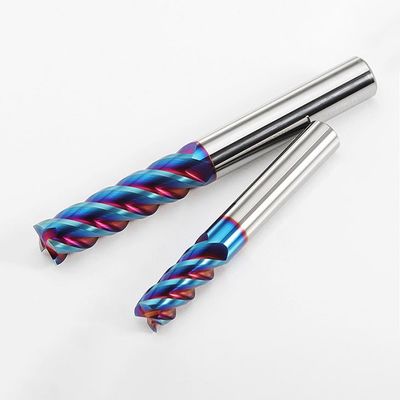

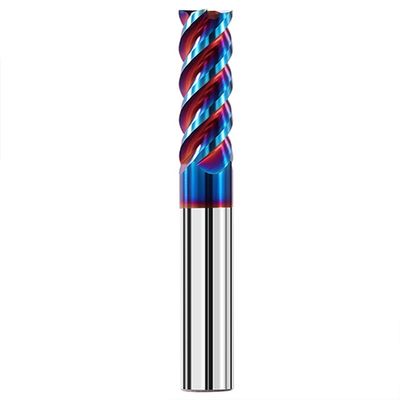

| 材料: | タングステンカーバイド | 穀物サイズ: | 0.6um 微粒子 |
|---|---|---|---|
| フルート数: | 4 | 形: | フラット |
| コーティング: | ナコ4 | 硬度: | 65HRC |
| ヘリックス角: | 35° | 切断直径: | 1-20mm |
| フルートの長さ: | 3-75mm | シャンクの直径: | 3-20mm |
| 全長: | 50-150mm | 適切な材料: | 彫刻刀鋼、焼き入れ鋼、炭素鋼、合金鋼 |
| 色: | Slivery | チップフルート: | 4 |
| 角度: | 35° | ||
| ハイライト: | nACo4 Coating Tungsten Carbide End Mill,35° Helix Angle Carbide End Mill,3 Years Warranty CNC End Mill |
||
| Parameter | Value |
|---|---|
| Flutes | 4 |
| Chip Flute | 4 |
| Coating | nACo4 |
| Shape | Flat |
| Angle | 35° |

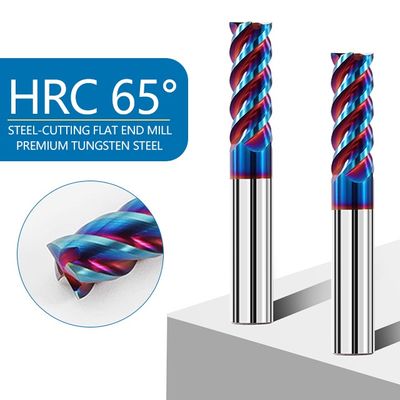

| HRC | 65° |

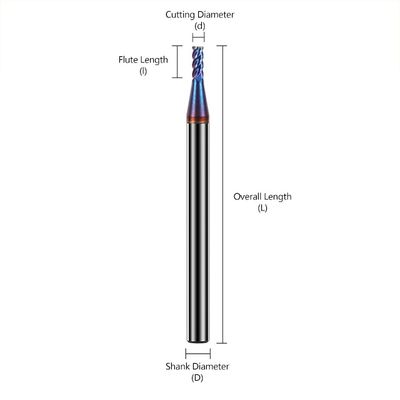

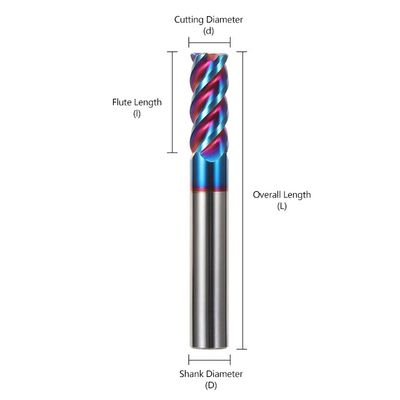

| Number of Flutes | Cutting Diameter (d) | Flute Length (l) | Shank Diameter (D) | Overall Length (L) |
|---|---|---|---|---|
| Double blade | 1 | 3 | 4 | 50 |
| 1.5 | 4.5 | 4 | 50 | |
| 2 | 6 | 4 | 50 | |
| 2.5 | 7.5 | 4 | 50 | |
| 3 | 8 | 3 | 50 | |
| 3 | 8 | 4 | 50 | |
| 10 | 40 | 10 | 100 |
A Please provide us with specific material requirements, precise dimensions, and drawings that include tolerances and quantities for different models, This will allow us to provide you with a more accurate quote.
A We have inspection processes from raw material production, to finished product grinding, to cleaning and packaging. Each process also has sampling inspection. If the product in the previous process is not qualified, it will never enter the second process. Ensure the quality of the finished product.
A For products that are often in stock, they can be shipped directly. For customized products, the specific judgment is based on the difficulty level of product processing. Normally, non-standard products require 20-25 days for production.
A We accept wire transfers, L/C ,ALIPAY, WEST UNION, PAYPAL, 100% payment is required for standard products before shipment, 50% for non-standard products before production, and 50% before shipment.
